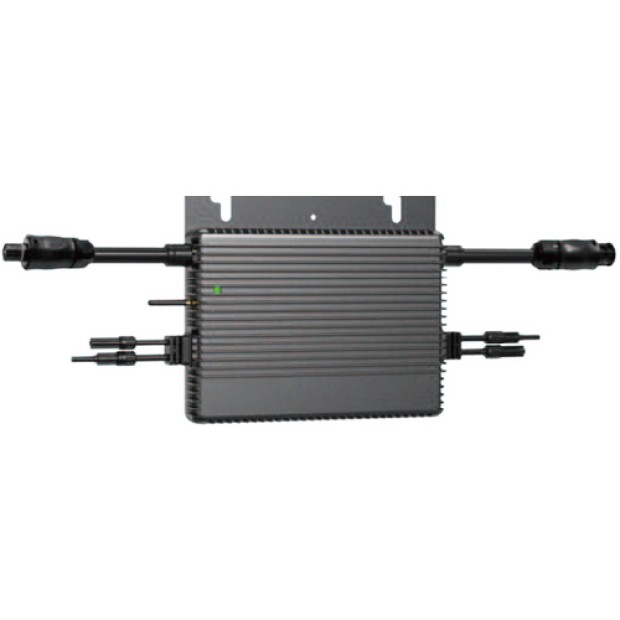

1000W Micro Solar Inverter PV Inverter Hybrid Channel
- Brand: BTBAI
- Product Code:EV1000
- Availability:In Stock
-
USD 599.00
QC Service Before Shipment
Quality pictures will be sent in 24 to 72 hours after order.
GREAT CUSTOMER SERVICE
Keep you in touch with our agent until you receive your items.
Postal Registration Package
Postal Registration Package.
SSL&PAYPAL SECURED
All data are encrypted with SSL, Paypal support.
1000W Solar Inverter
Rated Power | Rated Frequency Range | Maximum Input Voltage | Operating Voltage Range |
240~405W | 50±5Hz | 60V | 25~55V |
Rated output current | Rated output voltage | Type of Cooling | Communication Mode |
3.64A 3.5A 3.33A | 220V 230V 240V | Natural Cooling | WiFi+Bluetooth |
Satrt Voltage | Short-circuit Current | Maximum Input Current | PV Modules |
25V | 20A | 2*16A | 2pcs |
Rated Output | Protection Grade | Weight |
|
1000W | IP67 | 2.9KG | 10年 |
Operating Temperature | -40～65℃ | Available Certification | |
Introduction Chip Solutions | |||
Safety, EMC&Grid Standards | VDE-AR-N 4105:2018, EN50549-1:2019;VFR2019; IEC/EN 62109-1/-2;IEC/EN 61000-6-1/2/3/4;IEC/EN61000-3-2/-3 | ||
-
Spec:
2. Battery Input Voltage:12V
3. AC Voltage: 220/230V/240V
4. PV Input Voltage Range:20-150VDC
5. Inbuilt MPPT Solar Charger Controller:40A
6. MAX. PV Input Power: 800W
-
Use for:
you can use this inverter for your home and outdoor life.
